Quick Details

  • Place of Origin: Shandong, China (Mainland)
  • Brand Name: QUENTIN
  • Model Number: QYCY2.0-14
  • Lift Mechanism: Scissor Lift
  • Lift Drive / Actuation: Hydraulic
  • Power: 2.2kw
  • Rated Loading Capacity: 2000kg
  • Min. Lifting Height: 1.5m
  • Max. Lifting Height: 14m
  • Table Size: 2100*1530mm
  • Overall Dimensions: 2250*1750*1530mm
  • Weight: 1780kg
  • Certification: CE / ISO
  • Warranty: 1 Year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Voltage: 380V /50hz
  • Material: High-duty Steel Structure
  • Usage: Aerial Maintenance Work
  • Color: Customers' Requirements

Packaging & Delivery

Packaging Details wooden case
Delivery Time 15-20 working days from the payment
Product Description

Product Application

Scissor aerial work platform is an equipment used widely in aerial work. Its scissor structure make the lifting station have high stability, large platform and a strength carrying capacity. Therefore, it has a greater range of operations at high altitude, and is suitable for many people simultaneously. It enables high-altitude operations more efficient, safer and protected.


Other Specification

Model
Platform size(mm)
Loading capacity (kg)
Working height (m)
Platform dimension(mm)
self weight(kg)
QYCY2.0-6
2100*1530
2000
6
2250*1750*1530
1780
QYCY2.0-8
2100*1530
2000
8
2250*1750*1690
2070
QYCY2.0-10
2100*1530
2000
10
2250*1750*1850
2250
QYCY2.0-12
2550*1600
2000
12
2796*1852*1954
3200
QYCY2.0-14
2816*1600
2000
14
3067*1852*2230
3900

Main Features

1) Firm structure, large loading capacity, lift smoothly and maintenance simple

2) Adaptability, it can be used in harsh environments and general explosion proof place.

3) Widely application. It is suitable for factory workshop, square, lobby, airport and other aerial work operation places

4) High safety, it is equipped with up-down double control button with low voltage and one-touch emergency stop device and emergency drop device, improve the safety of equipment.


◆Got Installation,Alteration,Repair&Maintenance License of Special Equipment People’s Republic of China, certificate No.TS3437388-2016

◆Passed ISO9001:2008 certificate and CE certificates.

◆Won the honor of Shandong Jinan famous brand and Shandong famous trademark.

◆The Chinese Ping An insurance company bear product liability insurance

◆Free one-year warranty, 48 hours door-to door maintenance with cost price in a lifetime.


Certifications

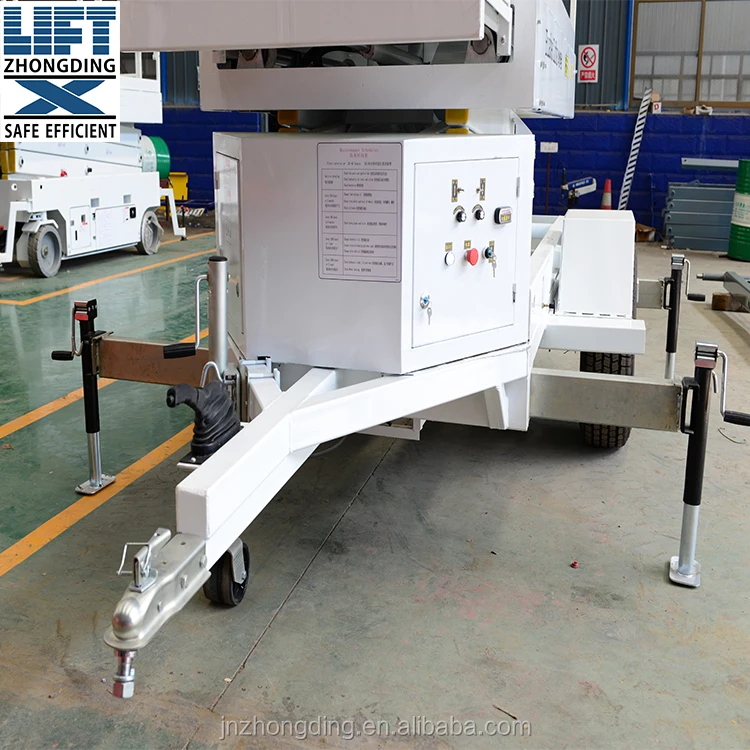

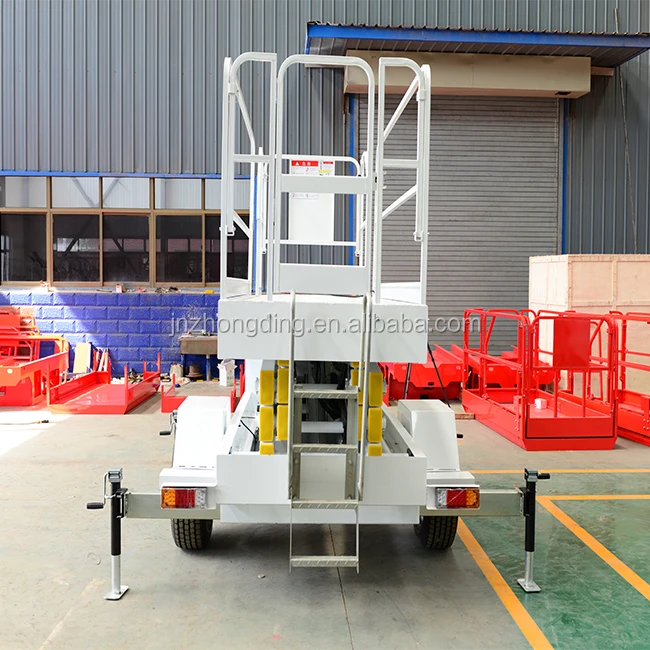

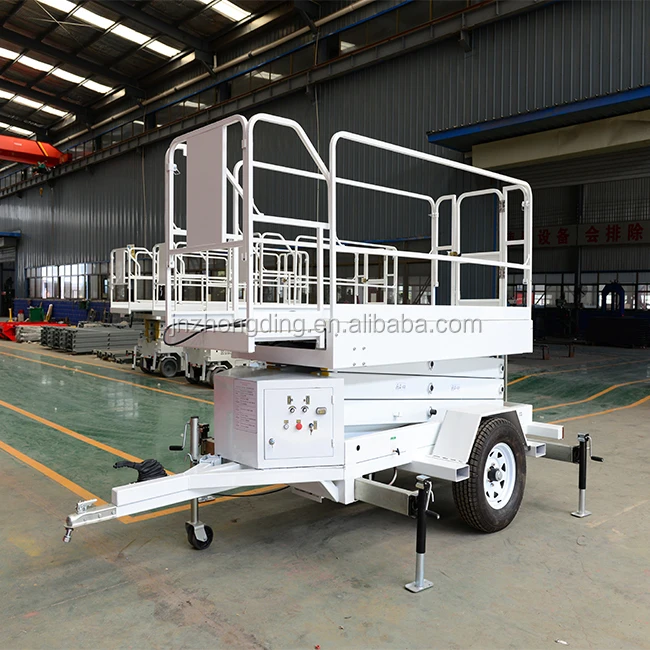

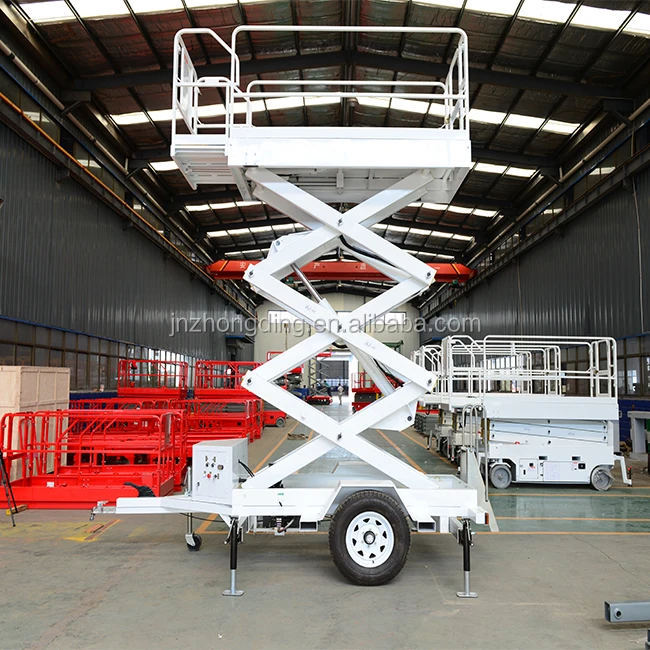

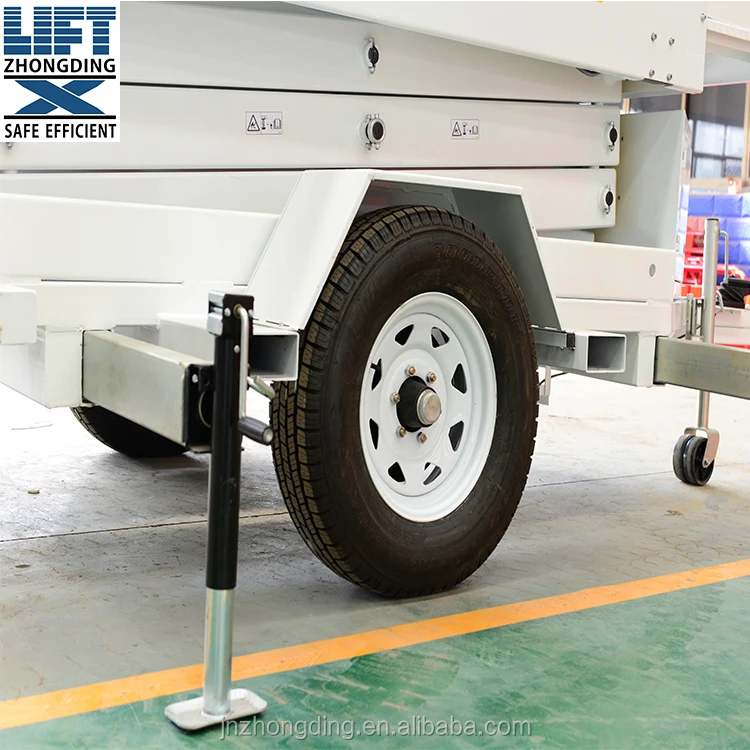

Detailed Images
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* View our Factory.

After-Sales Service

* Warranty for one year.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Delivery
15-20 working days from the payment
Packaging Details
International standard packaging: Wooden case packaging
Using method

1. Fix the 4 support leg on foundation firmly before use.

2. Connect the power supply, operate the lifting button on the electric control box, the platform can go up and down.

3. Operate the up button, the platform can rise; operate the down button, the platform can go down.

4. The platform is equipped with a remote control button, lift can be operated on the table.

5. The platform is equipped with an emergency drop valve, loosen the handle by hand counterclockwisely, the platform can go down slowly, tighten the handle clockwisely, the platform will stop falling.

Our Company

  Jinan ZhongDing Lifting Machine CO.,LTD is a manufacturer which is a specialist in the development, design, production, sales and services of hydraulic lifts, hydraulic lifting platform and aerial work platform. Our products throughout the industry and mining plant, warehouse cargo, highways, high-rise cleaning, maintenance, logistics, warehousing, communications, airports, shipping ports and other areas. According to the requirements of our customers, non-calibration automation equipment to address high customer labor costs, to help customers improve the core competitiveness of the market.
  The registered capital of Zhongding is 2 million dollars. We have an efficient team with 150 employees, it is made up of 30 engineering technicians staffs, 15 quality control staffs and 80 senior technical workers. Depends on the strong technical strength, strong research and development capability, our company has been to provide complementary products and services for many fortune 500 companies over the years, and get the consistent recognition of customers. Quentin was awarded the title of “China lift industry top ten enterprises" by the China Brand Quality Management Evaluation Center. In 2013, Quentin was awarded “Contract First, Credit First Enterprise”by the industry and commerce bureau. While our company has already passed the quality authentication of ISO9001 in our industry: 2008 international quality management system certification and European Union CE certification. Our company constantly in technical innovation, in order to make the equipment more humanize, more convenient and more environmentally friendly.
  Our team with excellent technical and good after-sales service. We are hoping to help your career higher, farther and safer!
